Wireless standard
Input
Output
Charging distance
Charging area
Charging effeciency
Working frequency
Standby power
Protection funtion
EMC standard
Coil type

Qi-BPP/SFC/iphone 7.5W
5V/2A or 9V/1.67A
5W/7.5W/10W
2-7mm
±8mm
80%@10W
110k-175kHz
<0.2W
FOD, OTP，OVP
FCC/CE
A11 coil module

Wireless standard
Input
Output
Charging distance
Charging area
Charging effeciency
Working frequency
Protection funtion
EMC standard
Coil type

Qi-BPP
19V/1A
5V/1A
25mm-35mm
φ20mm
63%@25mm (Samsung S7)
115k-140kHz
FOD, OTP，OVP
FCC/CE
long-distance coil module

Wireless standard
Input
Output
Charging distance
Charging area
Charging effeciency
Working frequency
Standby power
Protection funtion
EMC standard
Coil type

Qi-BPP/SFC/iphone 7.5W
5V/2A or 9V/1.67A
5W/7.5W/10W
2-7mm
±15mm
72-80%@10W
110k-175kHz
<0.2W
FOD, OTP，OVP
FCC/CE
Wide range coil module

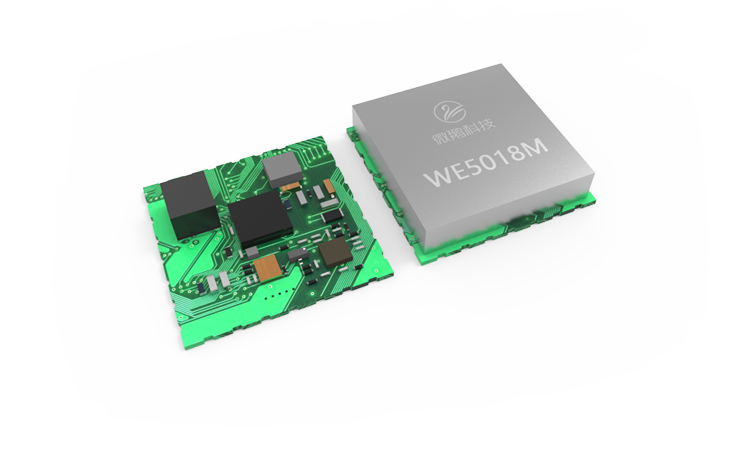

Module Size
Input voltage
Output power
Working Frequency
Coil type
Charging area
Charging distance
Protection funtion

30mm*30mm*7mm
5V/12V
0-10W
6.78MHz
for coil design
up to 25cm*25cm according to coil design
up to 70mm according to coil design
OVP、OCP、OTP

Technology
Input
TX coil size
RX coil size
Charging area
Charging distance
Output
EMC standard
Protection funtion

Low frequency magnetic resonance
AC120V60Hz/230V50Hz
145mm*110mm
φ78mm
±15mm
0-10mm
20V/2.5A
FCC part18
OVP、OCP、OTP

Technology
Input voltage
Charging distance
Output voltage
Output current
Charging area
Charging effeciency
Protection funtion

Low frequency magnetic resonance
DC 400V
15±10mm
24V
10-35A
X-aixs ±20mm;Y-aixs ±10m
up to 90%
OTP,OVP,OCP
